Adicionar a OLT no IXC Soft e Script de perfil

Criada por Danilo Tomich, Modificado em Qua, 8 Jan na (o) 1:41 PM por Danilo Tomich

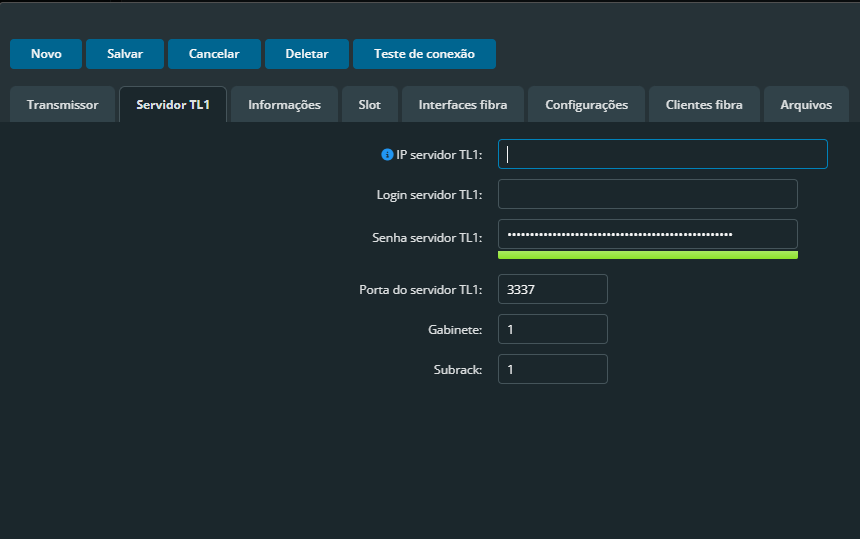

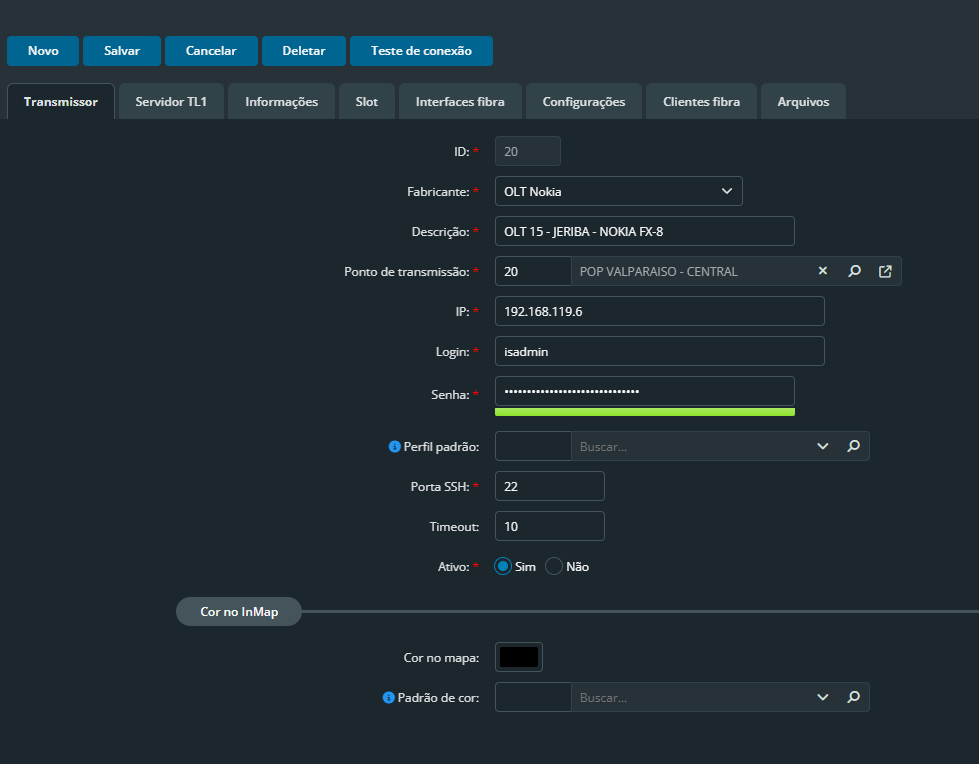

Informe o User e senha de acesso a OLT:

informe o Gabinete: sempre 1

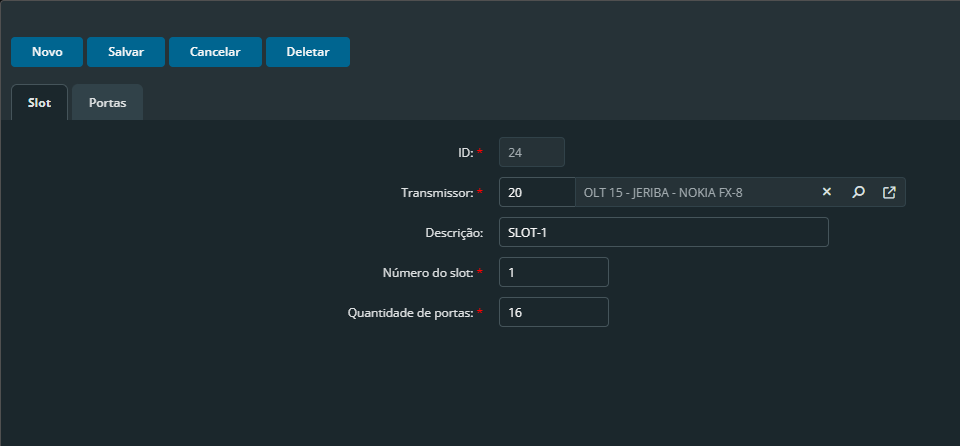

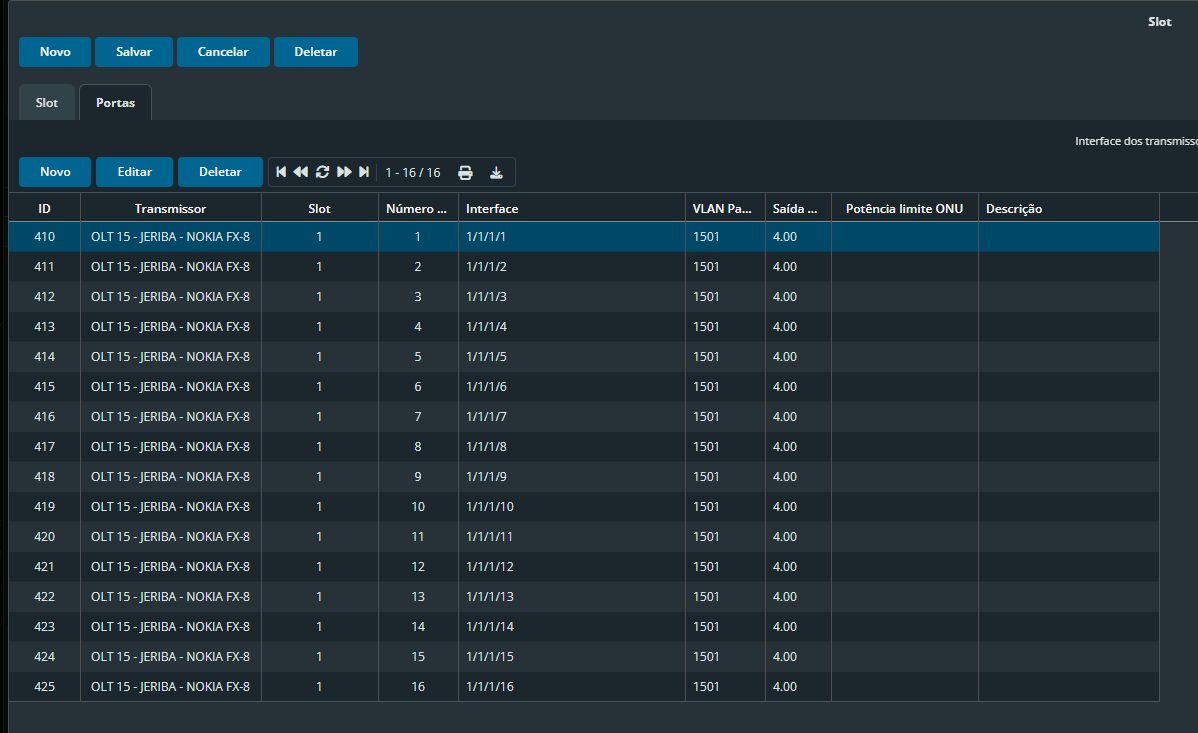

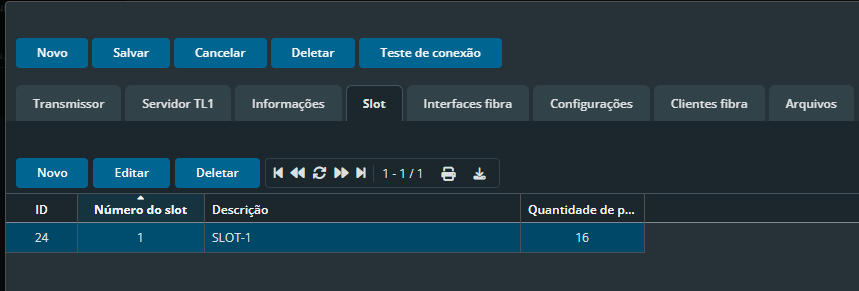

E o subrack é o numero do slot da placa PON

Scrips

ONT Nokia:

OBS: Esse perfil já esta paar enviar o firmware para a ONT e atualizar.
Caso deseja o código sem essa opção, basta no lugar de auto, deixar com disabled

configure equipment ont interface #pon_id#/#onu_numero# desc1 "#nome#" sernum #onu_mac# sw-ver-pland auto voip-allowed veip sw-dnload-version auto
configure equipment ont interface #pon_id#/#onu_numero# admin-state up
configure qos interface ont:#pon_id#/#onu_numero# ds-queue-sharing
configure equipment ont slot #pon_id#/#onu_numero#/14 plndnumdataports 1 plndnumvoiceports 0 planned-card-type veip admin-state up
configure qos interface #pon_id#/#onu_numero#/14/1 upstream-queue 0 bandwidth-profile name:HSI-1G_UP
configure qos interface ont:#pon_id#/#onu_numero# queue 0 shaper-profile name:HSI_1G_DOWN
configure bridge port #pon_id#/#onu_numero#/14/1 max-unicast-mac 10
configure bridge port #pon_id#/#onu_numero#/14/1 vlan-id #vlan# tag single-tagged
configure interface port uni:#pon_id#/#onu_numero#/14/1 admin-up

ONT Outros modelos:

configure equipment ont interface #pon_id#/#onu_numero# desc1 "#nome#" sernum #onu_mac# sw-ver-pland disabled voip-allowed veip sw-dnload-version disabled
configure equipment ont interface #pon_id#/#onu_numero# admin-state up
configure qos interface ont:#pon_id#/#onu_numero# ds-queue-sharing
configure equipment ont slot #pon_id#/#onu_numero#/14 plndnumdataports 1 plndnumvoiceports 0 planned-card-type veip admin-state up
configure qos interface #pon_id#/#onu_numero#/14/1 upstream-queue 0 bandwidth-profile name:HSI-1G_UP
configure qos interface ont:#pon_id#/#onu_numero# queue 0 shaper-profile name:HSI_1G_DOWN
configure bridge port #pon_id#/#onu_numero#/14/1 max-unicast-mac 10
configure bridge port #pon_id#/#onu_numero#/14/1 vlan-id #vlan# tag single-tagged
configure interface port uni:#pon_id#/#onu_numero#/14/1 admin-up

ONU OUTROS MODELOS

configure equipment ont interface #pon_id#/#onu_numero# sw-ver-pland disabled desc1 "#nome#" sernum #onu_mac# sw-dnload-version disabled
configure equipment ont interface #pon_id#/#onu_numero# admin-state up
configure qos interface ont:#pon_id#/#onu_numero# ds-queue-sharing
configure equipment ont slot #pon_id#/#onu_numero#/1 plndnumdataports 1 plndnumvoiceports 0 planned-card-type ethernet admin-state up
configure qos interface #pon_id#/#onu_numero#/1/1 upstream-queue 0 bandwidth-profile name:HSI-1G_UP
configure qos interface ont:#pon_id#/#onu_numero# queue 0 shaper-profile name:HSI_1G_DOWN
configure interface port uni:#pon_id#/#onu_numero#/1/1 admin-up
configure bridge port #pon_id#/#onu_numero#/1/1 max-unicast-mac 10
configure bridge port #pon_id#/#onu_numero#/1/1 vlan-id #vlan# tag untagged
configure bridge port #pon_id#/#onu_numero#/1/1 pvid #vlan#

ONU - INTELBRAS 110 B

configure equipment ont interface #pon_id#/#onu_numero# sw-ver-pland disabled desc1 "#nome#" sernum #onu_mac# sw-dnload-version disabled
configure equipment ont interface #pon_id#/#onu_numero# admin-state up
configure qos interface ont:#pon_id#/#onu_numero# ds-queue-sharing
configure equipment ont slot #pon_id#/#onu_numero#/5 plndnumdataports 1 plndnumvoiceports 0 planned-card-type ethernet admin-state up
configure qos interface #pon_id#/#onu_numero#/5/1 upstream-queue 0 bandwidth-profile name:HSI-1G_UP
configure qos interface ont:#pon_id#/#onu_numero# queue 0 shaper-profile name:HSI_1G_DOWN
configure interface port uni:#pon_id#/#onu_numero#/5/1 admin-up
configure bridge port #pon_id#/#onu_numero#/5/1 max-unicast-mac 10
configure bridge port #pon_id#/#onu_numero#/5/1 vlan-id #vlan# tag untagged
configure bridge port #pon_id#/#onu_numero#/5/1 pvid #vlan#
