PASSO 8.2 - PROVISIONAR ONT DE OUTRO FABRICANTE

Criada por Danilo Tomich, Modificado em Sex, 3 Jan na (o) 3:12 PM por Danilo Tomich

###Visualizar ONT para liberar:

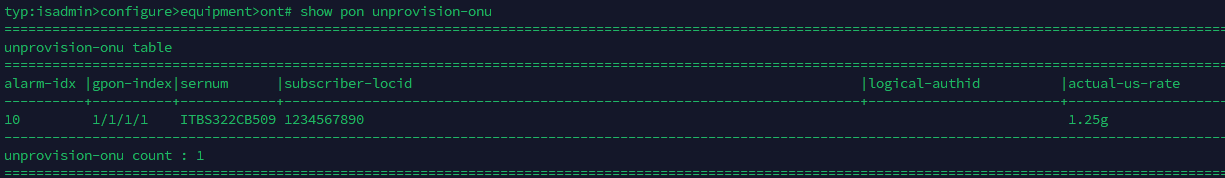

 show pon unprovision-onu

###Veja qual próximo numero liberado na porta PON

show equipment ont status pon 1/1/1/1

###Vamos liberar

configure equipment ont interface 1/1/1/1/2 sernum ITBS:322CB509 sw-ver-pland disabled desc1 "ONT-INTELBRAS-TEST" optics-hist enable
configure equipment ont interface 1/1/1/1/2 admin-state up

###Veja como ficou

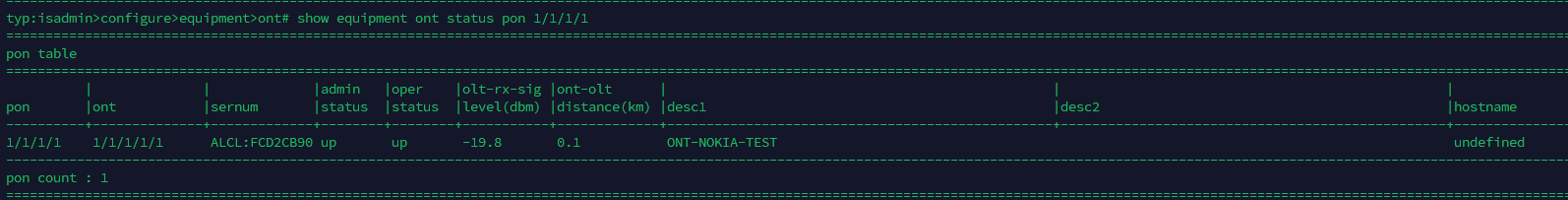

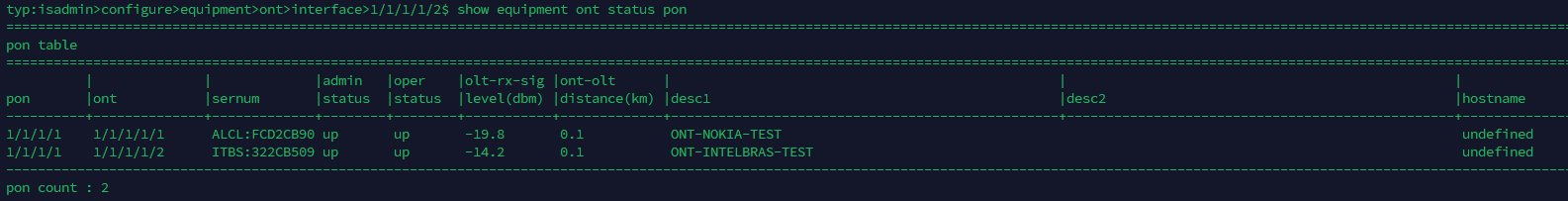

show equipment ont status pon

###Veja o card dela do veip. o número

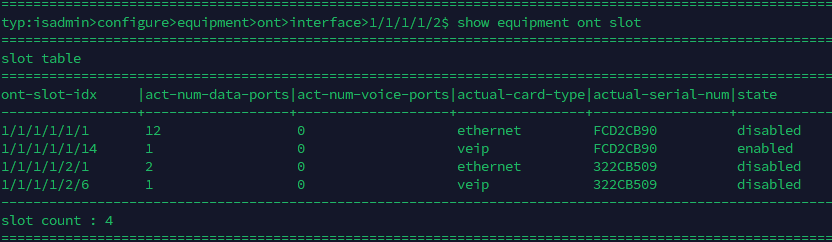

show equipment ont slot

No exmeplo: 1/1/1/1/2/6

configure equipment ont slot 1/1/1/1/2/6 plndnumdataports 1 plndnumvoiceports 0 planned-card-type veip admin-state up

configure interface port uni:1/1/1/1/2/6/1 admin-up
configure qos interface 1/1/1/1/2/6/1 upstream-queue 0 bandwidth-profile name:HSI_1G_UP
configure bridge port 1/1/1/1/2/6/1 max-unicast-mac 32 max-committed-mac 1
configure bridge port 1/1/1/1/2/6/1 vlan-id 901 tag single-tagged
