Configurar SNMP V2 - OLT ZTE (C300)

OLT-ZTE-POP_CARMO#show snmp configuration

snmp-server location No.889 BiBo Rd.PuDong District, Shanghai, China

snmp-server contact +86-21-68895000

snmp-server packetsize 8192

snmp-server engine-id 80000f3e03d4c1c819ee1e01

snmp-server engine-id mode mac

snmp-server group GroupPriv0 v3 priv read AllView

snmp-server group GroupPriv5 v3 priv read AllView write ViewPriv5

snmp-server group GroupPriv10 v3 priv read AllView write ViewPriv10

snmp-server group GroupPriv15 v3 priv read AllView write AllView

snmp-server community TOMICH view rw ro

snmp-server community nKnmu5URiA view AllView rw

snmp-server view AllView 1.2 included

snmp-server view AllView 1.3 included

snmp-server view allview 1 included

snmp-server view ViewPriv5 1.2 included

snmp-server view ViewPriv5 1.3 included

snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.10.1 excluded

snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.10.10 excluded

snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.20.1 excluded

snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.20.10 excluded

snmp-server view ViewPriv10 1.2 included

snmp-server view ViewPriv10 1.3 included

snmp-server view ViewPriv10 1.3.6.1.4.1.3902.1082.20.10 excluded

snmp-server host 170.79.92.42  version 2c nKnmu5URiA enable NOTIFICATIONS target

-addr-name SNMP isnmsserver udp-port 161 trap-report-compatibility v20

snmp-server host 170.79.92.46  version 2c TOMICH enable NOTIFICATIONS target-add

r-name ZABBIX isnmsserver udp-port 161 trap-report-compatibility v20

OLT-ZTE-POP_CARMO#configure terminal

OLT-ZTE-POP_CARMO(config)#snmp-server community TOMICH view AllView rw

OLT-ZTE-POP_CARMO(config)#exit

OLT-ZTE-POP_CARMO#write

Backuping old configuration into flash...

Collecting configuration into memory...

Writing configuration into flash...[OK]

OLT-ZTE-POP_CARMO#

###Para remover:
OLT-ZTE-POP_CARMO(config)#no snmp-server community nKnmu5URiA view AllView rw
OLT-ZTE-POP_CARMO(config)#no snmp-server community nKnmu5URiA

###SALVAR
write

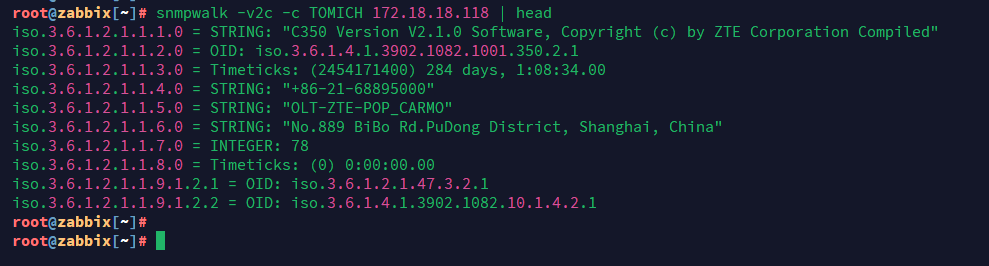

Visualizar no ZABBIX:

snmpwalk -v2c -c TOMICH 172.18.18.118 | head
